Description

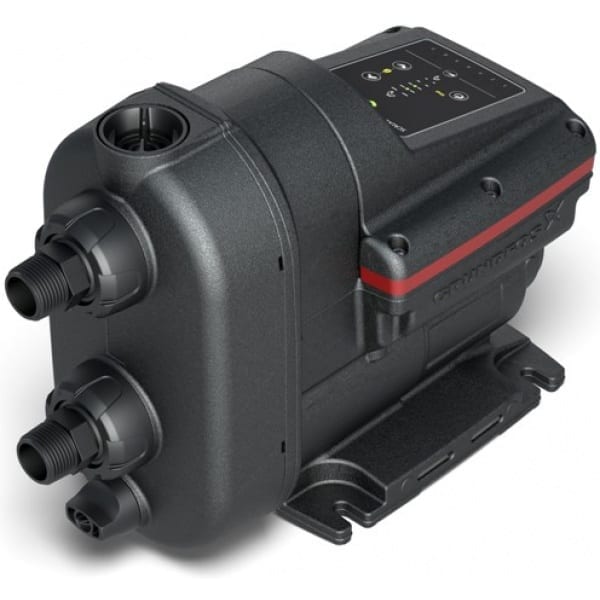

GRUNDFOS SCALA2 is a robust, composite, variable speed pump that adjusts performance according to water demand, providing constant pressure to all taps.  The fully integrated pump includes a motor, tank, sensor, drive and non-return valve in one compact unit that is quick and easy to install.  SCALA2 is self-priming, allowing for use from both above and below ground water sources and the water-cooled motor ensures quiet operation.

SCALA2 incorporates integrated speed control enabling perfect water pressure at the taps, meaning that the pump performance will increase with increasing demand. SCALA2 can be installed in three easy steps:
1. Connect the pipes.
2. Prime the pump.
3. Plug the pump into the power outlet and the pump will start.

Grundfos SCALA2 has all the components necessary to ensure a comfortable pressure:

• Intelligent controller
• Integrated speed-controlled drive
• Integrated tank
• Integrated sensors
• Integrated non-return valve.

APPLICATION:

• Household water supply
• Pressure boosting from above ground rainwater or holding tanks
• Pressure boosting from below ground water sources – eg. below ground tank or dam
• Mains boosting

FEATURES:

Variable Speed
The pump adjusts performance according to water demand, providing constant pressure to all taps regardless of variations in demand or inlet pressure.

Self-Priming
Ideal for pressurising water from above or below ground water sources with a suction lift of up to 8 metres and self-priming up to 4 metres.

Energy Efficient
The pump features a permanent magnet motor to help reduce power consumption while the frequency controller matches the power consumption with the required water output, also helping to conserve energy and reduce energy bills.

Simple Selection
One model to suit most domestic applications makes selection easy.

User Friendly
The easy-to-use control panel features LED indicators displaying power status, pressure setting and alarm indicator lights.

Protective Functions
To protect the pump and help ensure a long life, a range of protective features are incorporated into the pump such as; dry-run protection, anti-cycling alarm, auto-reset and maximum continuous operation time (30 mins).

Easy Installation
Quick and easy installation in just three steps; connect the pipes, prime the pump and plug into the power outlet.

Integrated Non-Return Valve
No additional non-return valve required – plug and pump solution.

SPECIFICATIONS:

Power: 550 Watts
Max Pumping Height: 45 meters max
Max Pressure: 63 PSI (6 Bar)
Max Flow Rate: 60 litres per minute
8 meter suction lift
430 KPA
47DB Noise level (volume of a modern dishwasher)
220-240V
Max Liquid Temperature: 45 Degrees
